More stability on the road – thanks to the KS30 clutch with anti-sway function

With the KS30 anti-sway switch, you can effectively prevent your trailer from swaying and ensure smoother handling.
It is suitable for drawbars with a diameter of 35, 40, 45 or 50 mm and is designed for a total weight of up to 3000 kg and a drawbar weight of up to 300 kg (depending on the bolt combination).
An integrated water level stabilizer, safety indicator light and soft dock provide additional comfort and safety.
The switch is not lockable, but it is equipped with all necessary mounting hardware.

Information:

• Anti-sway switch / Ball switch
• For Ø 35, 40, 45 and 50 mm drawbars
• Security indicator
  Note for easier activation of the tensioning device : first pull in direction 1, then in direction 2.

Specifications:

• Type: KS30
• Maximum permitted weight: 3000 kg
• Load capacity: 300 kg (or 200 kg for M12/M12 model)
• Screw combinations: M12/M12, M14/M12, M14/M14
• Weight: 7.37 kg

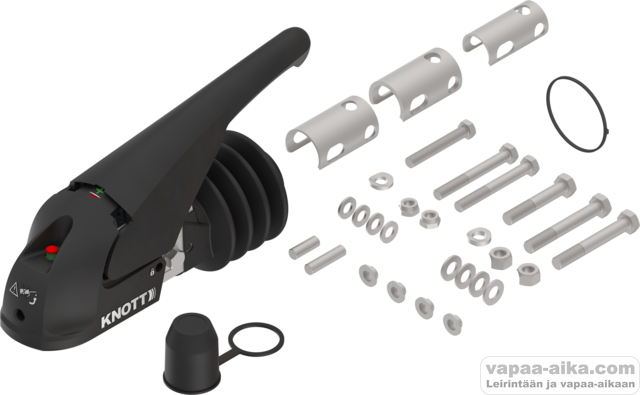

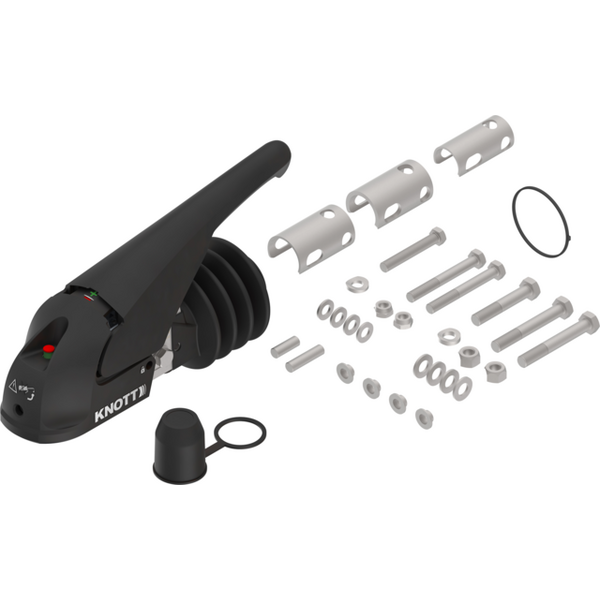

Delivery contents:

• 1 × Anti-sway switch KS30
• Adapter plates
• Screws and nuts

Suitable drawbar lock: 781097-FB
