Berger Titanium siirtolaite Mover asuntovaunulle maksimi 2250 kg

The Berger transfer device was designed and developed without compromise.

The concept was simple - to create a caravan steering aid that focuses on value retention and innovative product features. The steering aid is compact and lightweight thanks to its alloy housing.
The 12V motors ensure easy maneuverability, safety and reliability - even uphill with a gradient of 25% and on rough terrain.
Thanks to intelligent approach control, you can guide your caravan exactly where you want it.

Detail:

• Alloy case, so it's absolutely lightweight
• Precision-tuned, splash-proof, alloy gear case
• Alloy drive rollers for long service life
• Precisely installed crossbars and installation accessories
• Extensive installation accessories (suitable for all common caravan brands)
• Intelligent Quattro technology
• Thanks to the excellent control system, the expansion of tandem axles is really child's play - both drives are networked with just one control box.

Specifications:

• Supply voltage: 12 volts DC
• Average current consumption: 25A (approx.)
• Max. Current consumption: 76A (approx.)
• Speed: 12 cm per second (approx.)
• Approx. net weight (including all accessories and supplies): 35 kg
• Traction force dual use / quadruple use: 2,250 kg / 3,500 kg
• Minimum width (caravan/trailer): 1,800 mm
• Maximum width (caravan/trailer): 2500 mm
• Power source (normal car battery): 12V

Scope of delivery:

• 2 x motor unit
• Main linkage arm
• Drive the connecting rod
• Actuator push rod
• Actuator lever
• Bolts and nuts
• Chassis top mounting plate
• Boot U disk
• Base frame mounting plate
• flexible cable protection hose
• Motor cable 5 m
• Battery connection cable 1.6 m
• Chip bolt
• Lock nuts
• washers
• Self-tapping screws
• Cable clip
• Sheet metal
• Tire lugs
• Flat plug
• Cable markings
• Pole markings
• Cable ties
• Battery disconnect switch (key and mounting hardware)
• spacer

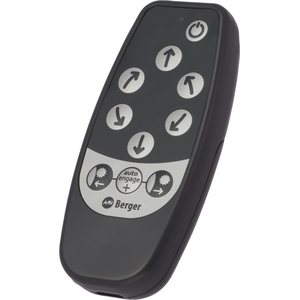

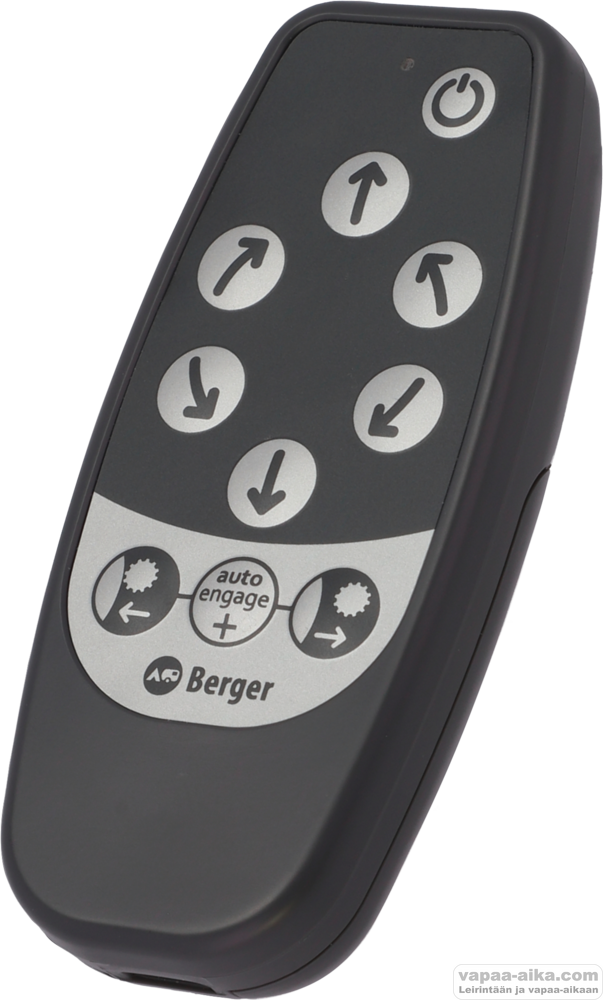

• Remote control

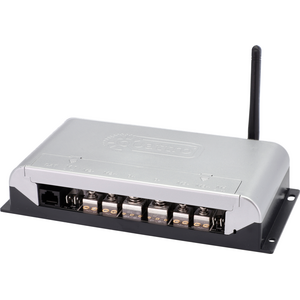

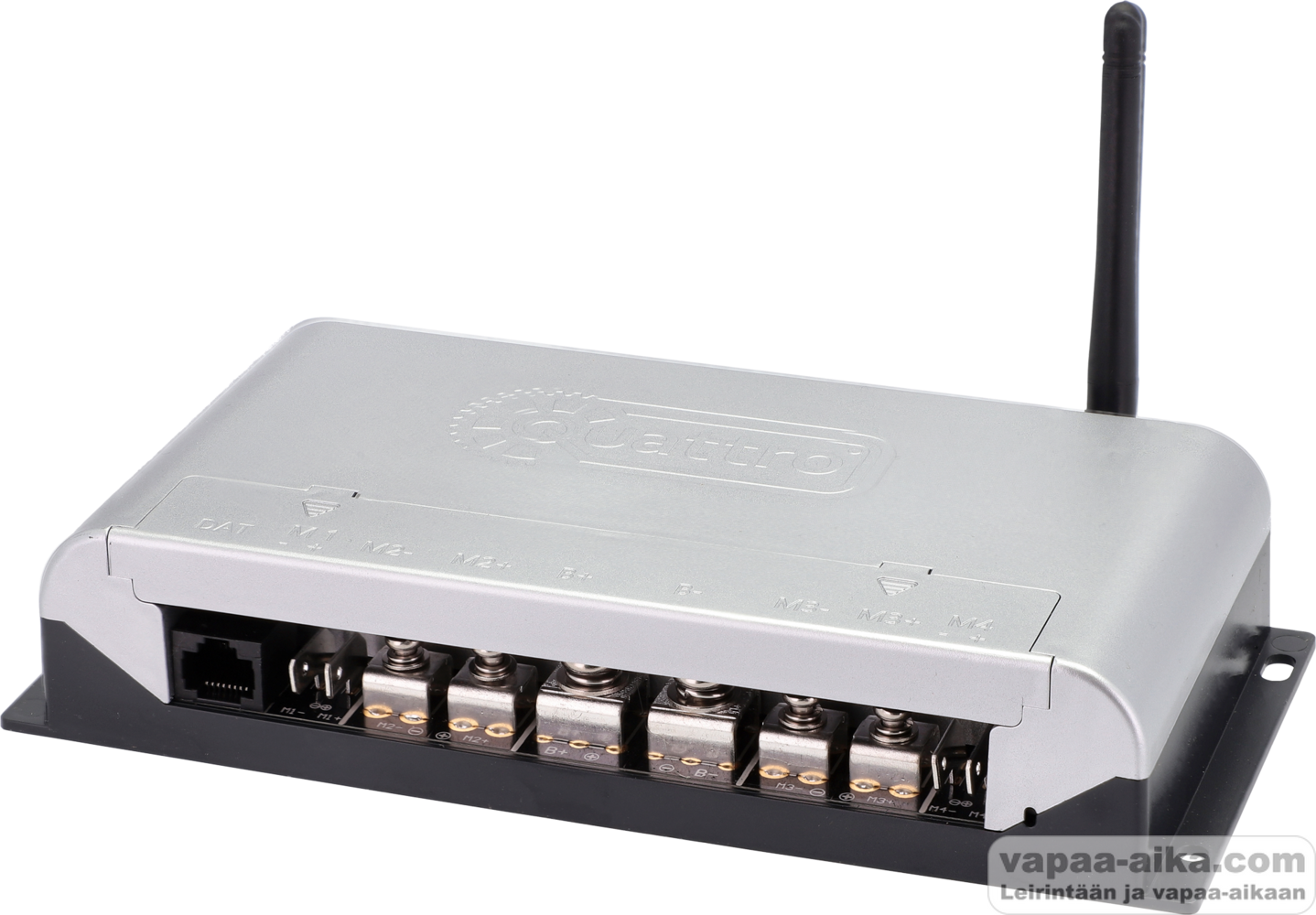

• Electronic control unit
• Instructions
• AAA batteries (for remote control)
