Telair Clima e-Van 5400H, air conditioner and air heat pump

Compact rooftop air conditioning system with heat pump

Quiet, lightweight and easy to install, it can be mounted to the ceiling not only through a standard 40 x 40 cm roof hatch hole, but also through a reduced 36 x 36 cm hole.
This technically advanced air conditioner has been designed taking into account all new resources to create an environmentally friendly product.

The refrigerant gas used for the car's air conditioning systems is R32, which currently has the lowest global warming potential (GWP 675), reducing environmental impacts by 70% compared to previously used gases.
There are two models available with different cooling capacities, both equipped with a heat pump.

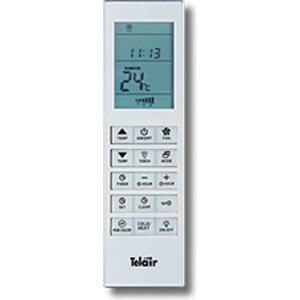

Cooling, heating and automatic functions can be selected using the remote control and timer function.

The CLIMA e-VAN 5400H model is designed for low consumption and can also be connected to the battery via a pure sine wave inverter of at least 1500 W (in use) for use while the vehicle is moving.

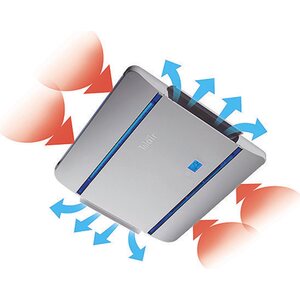

The small and modernly designed interior diffuser is only approx. 4.2 cm thick and is easy to install due to its small size.
The model is equipped with a light blue multi-function display and LED lights that can be easily turned on and off using the remote control.

Specifications:

For vehicle length: 4-6 m
Cooling capacity: 5,800 BTU / 1.70 kW
Heating power: 5,500 BTU / 1.65 kW
Ventilation levels: 3 + AUTO
Mains voltage: 230 V / 50 Hz
Average power consumption: Cooling 2.9 A / Heating 2.8 A
Starting current: 15 A (0.10 s)
Power consumption: Cooling 660 W / Heating 640 W
Required generator: 2200 W
Maximum air cooling: 300 m³/h
Weight: 30 kg

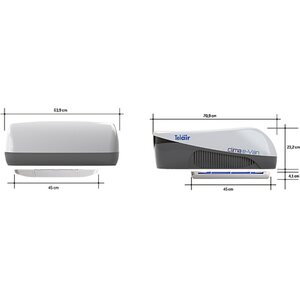

Dimensions: 23.9 x 71 x 61.9 cm
Air diffuser height: 4.2 cm
