Vehicle Scales Drawbar Scales for Weighing Single-Axle Motorhomes and Caravans

Avoid overload problems in advance, not on the road. This scale has a maximum load of 1500 kg.

Caravan Motorhome Weighing:

Weighing the drawbar weight:

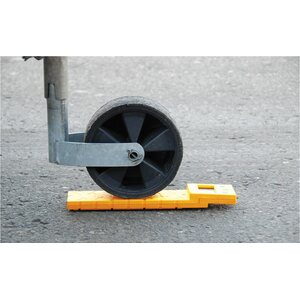

You can determine the drawbar weight by placing a scale under the cam wheel.

Weighing the total mass and axle load of the caravan:

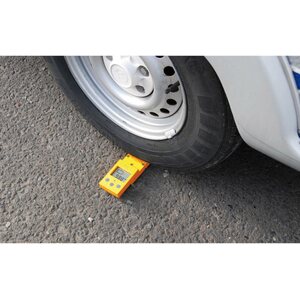

Weigh the weights on the right and left sides separately by placing a scale under the tire and driving over the scale, and adding the resulting weights together.

Weighing the motorhome:

If none of the vehicle's tires exceeds the maximum weight approved for the scale of 1500 kg (4 tires x 1500 kg = maximum total mass of the vehicle being weighed 6000 kg):

Axle load for front axle:

Weigh the weights of the right and left front axles separately by placing a scale under the tire and driving over the scale, and adding the resulting weights together.

Axle load on the rear axle:

Weigh the weights of the right and left rear axles separately by placing a scale under the tire and driving over the scale, and adding the resulting weights together.

Total weight / Total mass:

Add together the front axle load and the rear axle load

Product information:

• Powered by 3 x 1.5 V batteries (sold separately).
• Maximum load: 1000 kg
• Operating temperature 0 - 50°C
• Dimensions: 36 x 7 x 4.5 cm
• Deviation > 3%
• Color: orange

The scale is also available with a weighing capacity of 1000 kg for weighing caravans and motorhomes. Product code 150050
